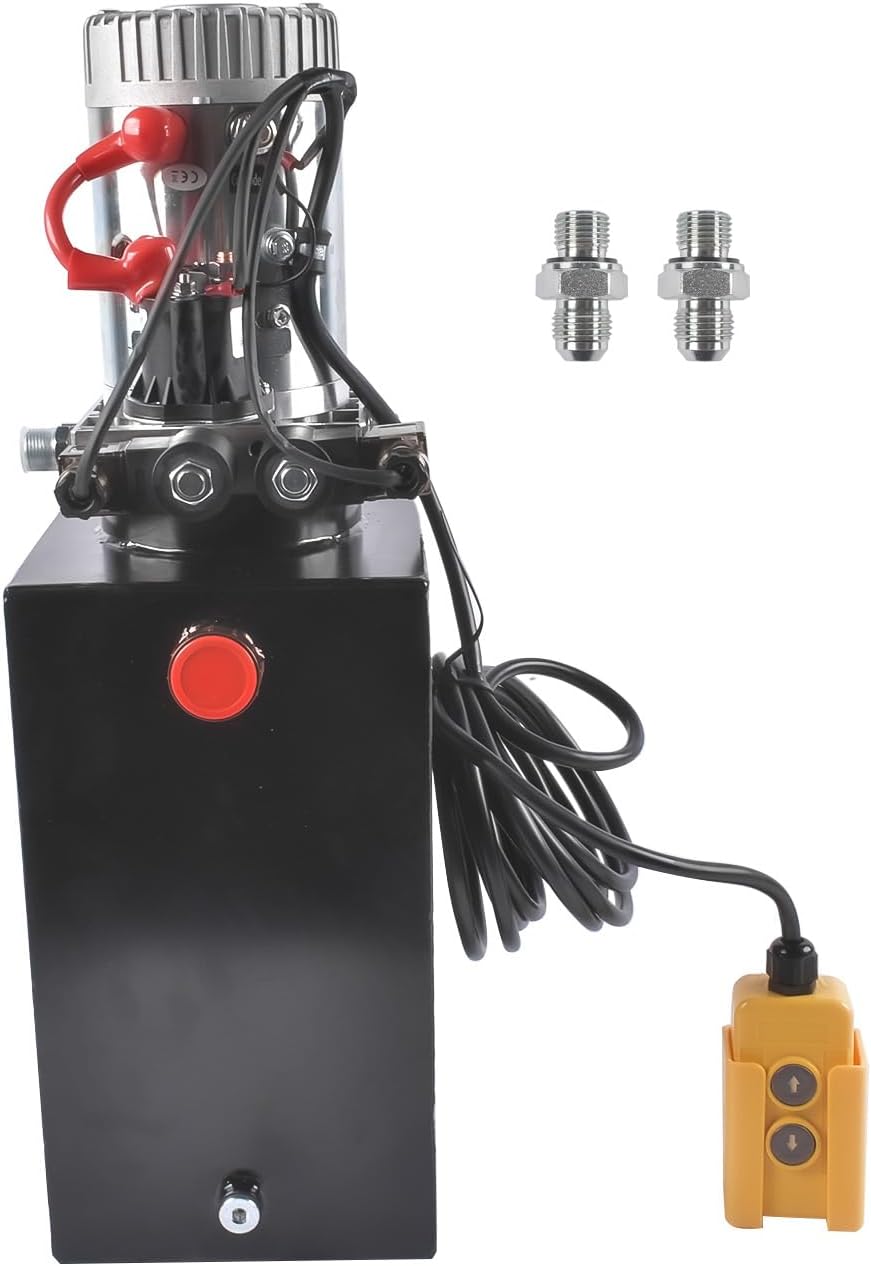

10 Quart Hydraulic Power Unit 1.6KW Power, 12V DC Double Acting Hydraulic Pump 2.1HP for Dump Trailer Car Lifting, Hydraulic Pump Power Unit, Metal Reservoir, 3200 PSI Max Pressure

SpecificationsOil Tank Size: 13"*7.1"*7.1" (10 Quart/10 L)Voltage: DC 12VMotor Power: 1.6KWA1 and A2 Oil Port Pressure: 3200PSI / 22MPaActing: Double-actingOil Port Model: (9/16")SAE#6 PortInstallation Method: Horizontal MountReservoir Material: MetalFeatureEasy to UseThis hydraulic power unit can be used directly with the controller (included) after connecting your cylinder with the oil pipe (not included) and connecting the 12V DC power supply (not included) according to the instructions. The interface type of the oil port is (9/16")SAE#6, and the suitable hydraulic oil viscosity range is 22-46mm²/s.Double Acting Power UnitThis double-acting hydraulic pump must be used with a double-acting cylinder. The hydraulic pump will have an outlet and return port when controlling your cylinder up and down (for up: A2 for outlet and A1 for return; for down: A2 for return and A1 for outlet), so your cylinder must also have two ports to work.One Force Lifts a Thousand PoundsThe hydraulic pump is equipped with a 12V DC motor (rated at 1.6KW) and a 10 quart/10 liter oil tank. The maximum pressure at the outlet can reach 3200PSI/22MPa with your double-acting cylinder can easily lift at least 5 tons of weight.Wide ApplicationThis double-acting hydraulic pump isn't limited to one task. It's a versatile workhorse, suitable for various lifting and stamping applications. From dump trailers and container truck tailplates to hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, and more.

• Double-Acting Power Performance - Powered by a 1.6KW 12V DC motor and a 10-quart (10-liter) oil tank, this hydraulic pump delivers a powerful 3200 PSI (22 MPa) output pressure. When paired with a double-acting hydraulic cylinder, it effortlessly handles loads exceeding 5 tons, making it ideal for heavy-duty lifting applications.
• Rapid Response Operation - The high-efficiency motor enables instant startup and rapid oil output, significantly reducing cycle times for dump trailers, lifting platforms, and hydraulic beds. Achieve full lifting/lowering actions without delay.
• Product Specifications - Oil Tank Size: 13"*7.1"*7.1" (10 Quart/10 L); Voltage: DC 12V; Motor Power: 1.6KW; A1 and A2 Oil Port Pressure: 3200PSI / 22MPa; Acting: Double-acting; Oil Port Model: (9/16")SAE#6 Port; Installation Method: Horizontal Mount; Reservoir Material: Metal.
• Complete Plug-and-Play Kit - Pre-assembled for immediate use, the pump includes simplified wiring with clear instructions. The package contains one additional SAE #6 connector and a 15-foot remote control for flexible operation at a distance. All necessary components are included for straightforward installation without modifications.
• Wide Application - Weonefit hydraulic pump is perfect for replacing your dump trailer pump, and you get a great performing hydraulic power unit for half the cost of a dump truck pump store. It can also be used as a power unit for other hydraulic systems such as garden tractors, forklifts, stackers, small or medium-sized lifting platforms, etc.
