3 Row Aluminum Radiator For 1942-1946 Chevy BK/BL/BM/BN/Truck 3.8L l6 GAS

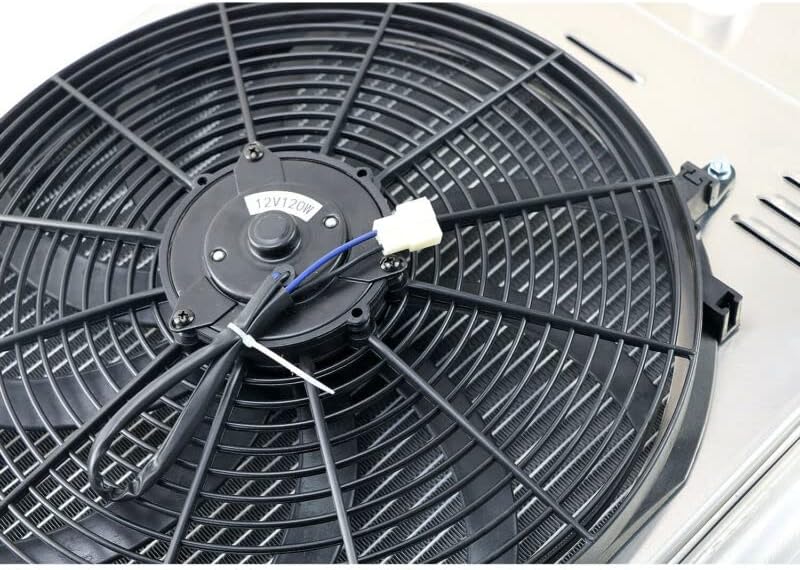

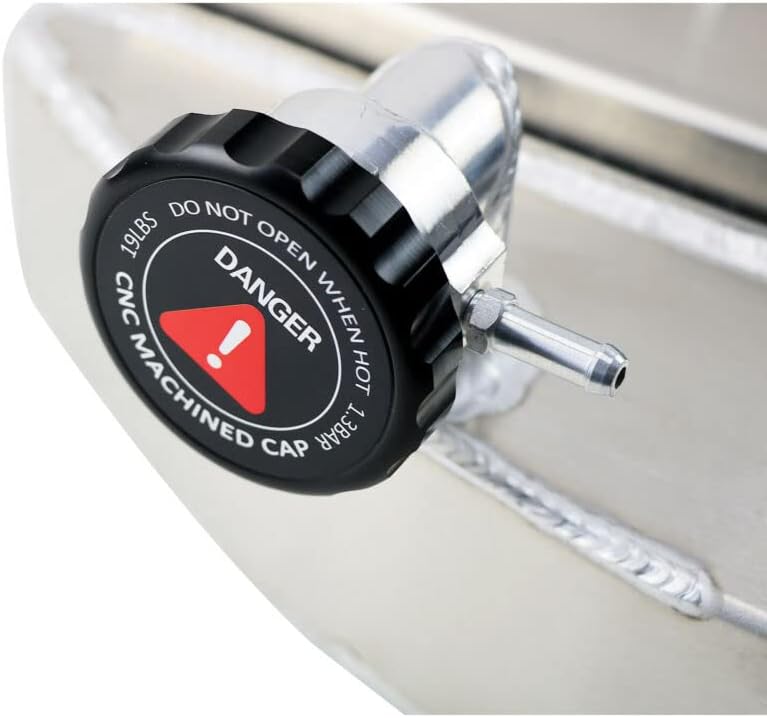

Fitment For 1942-1946 Chevy Truck 3.8L l6 GAS For 1942-1946 Chevy BK 3.8L l6 GAS For 1942-1945 Chevy BL 3.8L l6 GAS For 1942-1945 Chevy BM 3.8L l6 GASFor 1942-1945 Chevy BN 3.8L l6 GAS Radiator Details Row Count: 3 Row Upper Inlet: 1.5in located on driver side Lower Outlet: 1.75in located on passenger side Surface Finish: Includes CNC machined filler neck and cap OEM style brass petcock drain CNC machined filler neck and cap Fans Size Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number Manufacturer Part Number:CC4146CH, RR4146CH, 4146CH, DPI4146CH, CU4146CH

• Core Size: 22.25in H x 18in W x 1.73in T Overall Size: 29.25in W x 20.62in H
• nlet/Outlet Diameter:1.5in/1.75in
• Package Include: Come with 1 x 3 Row Complete Radiator. 1x Aluminum Shroud.1x16”Fans.1x Thermostat Relay Kit.
• Built with full aluminum for maximum cooling efficiency to ensure durability in extreme condition.
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
