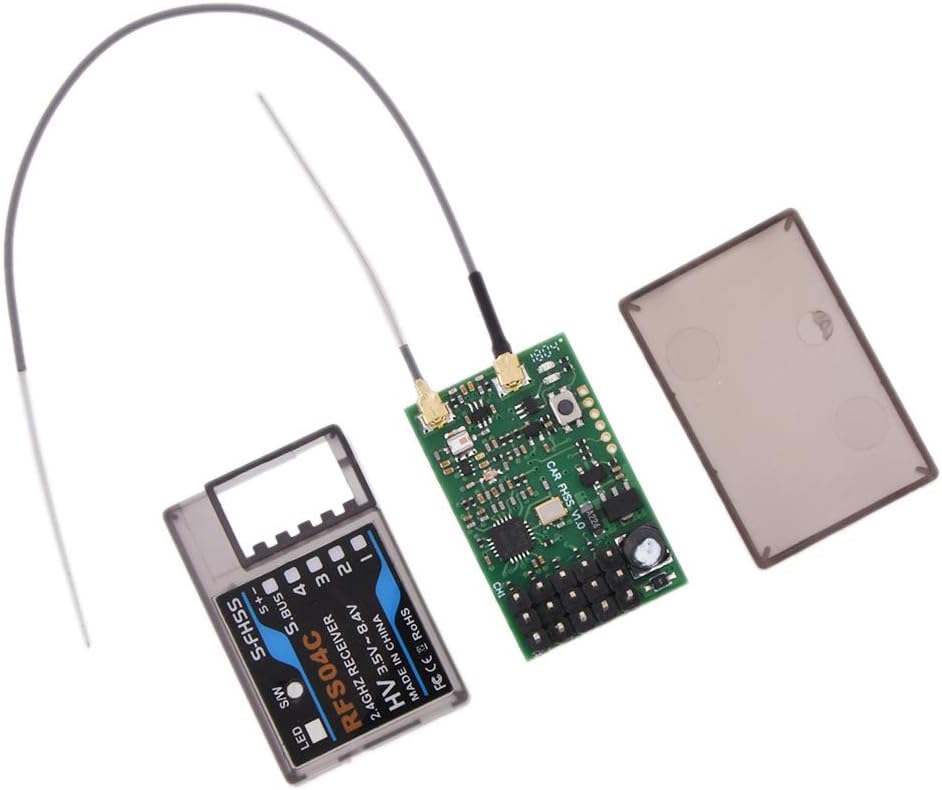

4CH SBUS Dual Antenna RC Receiver Compatible with TM-FH RF S-FHSS (RFS04C)

RFS04C 2.4G S-FHSS Compatible 4CH and SBUS RC Receiver Module Specification: Item Name: FRS04C Operating Voltage: 3.3V～8.4V Dimension: 35.5x23.3x13.2mm Weight: 7.3g No. Of Channels: 4CH+ SBUS Antenna: Dual Antenna Compatibility Compatible : Futaba S_FHSS / TM-FH RF Module Suitable for Futaba 4PX, 7PX, 4PV, 3PV etc. S_FHSS system Feature:Dual-antenna receiving system, built-in and external antenna to keep it concise and improve high receiving sensitivity; Integrated voltage stabilizing circuit, operating voltage can be 1s-2s lipo, it won’t be out of control for instantaneous voltage reduction; Full 4CH output + SBUS port, suitable for the remote control cars, Rock Crawlers which required more channels.Bind Procedure:Bring the transmitter and the receiver close to each other within 20 inches (half meter). Turn on the transmitter. Turn on the receiver.Press and hold the Link switch more than two(2) seconds. When the link is complete, the LED in the receiver changes to solid green. It could be failed to bind as the environment, please repeat the above steps.

• Compatible : Futaba S_FHSS / TM-FH RF Module Suitable for Futaba 4PX, 7PX, 4PV, 3PV etc. S_FHSS system
• Dual-antenna receiving system, built-in and external antenna to keep it concise and improve high receiving sensitivity;
• Operating Voltage: 3.3V～8.4V, Dimension: 35.5x23.3x13.2mm
• Integrated voltage stabilizing circuit, operating voltage can be 1s-2s lipo, it won’t be out of control for instantaneous voltage reduction;
• Full 4CH output + SBUS port, suitable for the remote control cars, Rock Crawlers which required more channels
