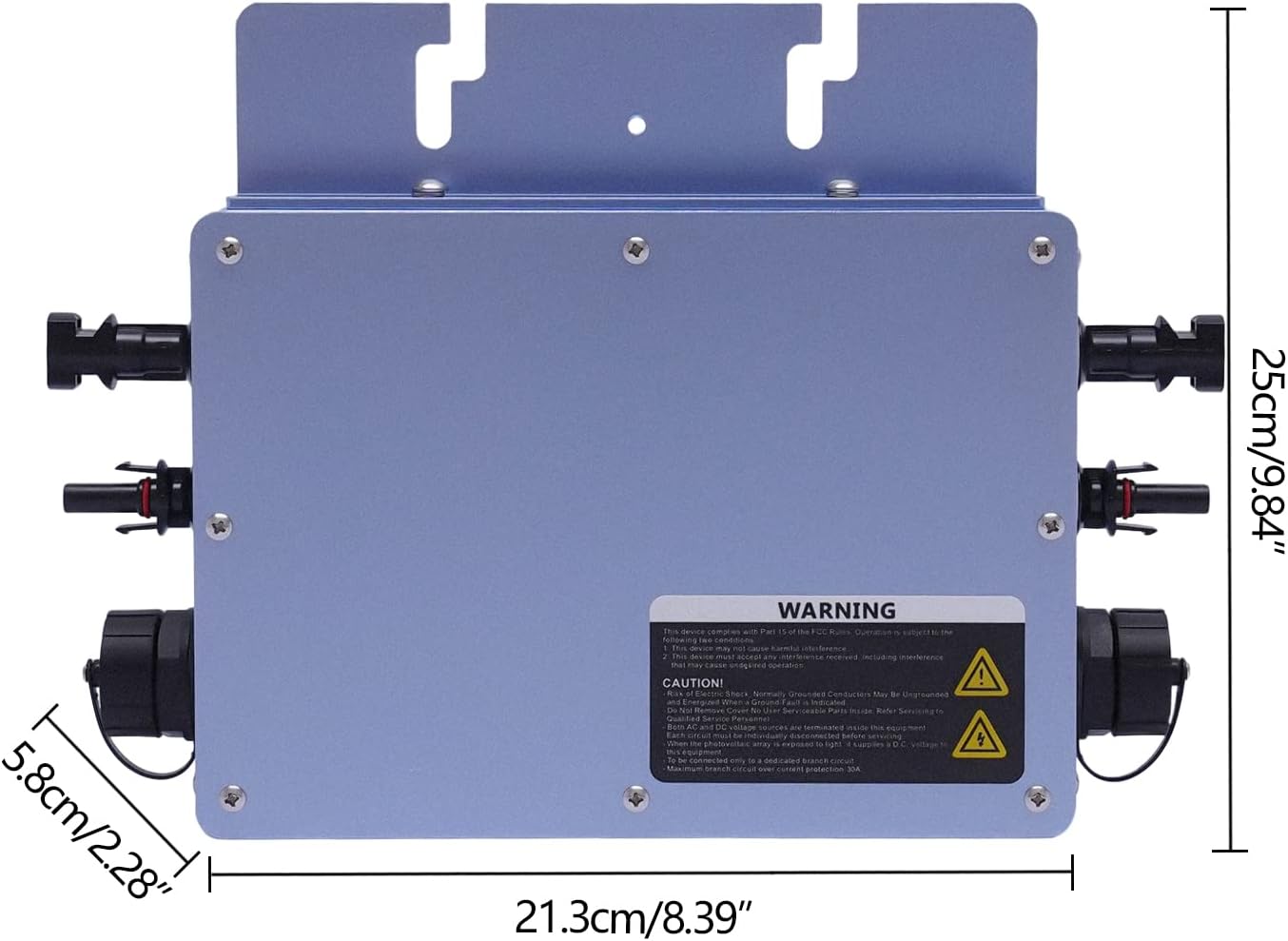

600W Solar Micro Inverter - IP65 Waterproof Grid Tie Power Inverters with LCD Display DC to AC Inverter for 30V/36V Solar Panel 36V Batteries | Aluminum Alloy, Blue

This microinverter can efficiently turn sunlight into clean and green power. The IP65 waterproof design and aluminum construction make it last longer. And it has a display that allows you to clearly see the machine in action. Its powerful output efficiently produces electricity for you to use.ApplicationThis product is applicable to 30V or 36V solar panels, 36V batteries. It can be used in residential and small commercial environments. It is suitable for various household appliances. It can convert the DC power generated by solar panels into AC power available for household appliances.How to Use1.Install the inverter on the bracket of the photovoltaic panel with the screws provided by the machine.2.Connect the positive and negative poles of the DC connection plug on the photovoltaic board to the DC input terminal of the inverter.3.Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug. 4. Connect the AC output cable to the AC main cable.5.Repeat steps 1 to 3, install and connect all inverters.6.Connect the AC main cable to the utility grid to start your green energy journey.SpecificationModel: WVC-600WColor: BlueMaterial: Aluminium AlloyPower: 600WVoltage: 110VPlug: US StandardOperating Temperature Range: -40℃~60℃/-40℉~140℉Waterproof Rating: IP65Cooling Method: Self-coolingVOC Voltage Range: 36-48VMaximum Output DC Voltage: 54VPeak Power Tracking Voltage: 22-45VOperating Voltage Range: 17-50VMin/Max Startup Voltage: 22-50VMaximum DC Short Circuit Current: 40AMaximum Input Operating Current: 27.2APeak Output Power: 600WRated Output Power: 550WRated Output Current: 4.58ARated Voltage Range: 80-160VACRated Frequency Range: 57-62.5HzStatic MPPT Efficiency: 99.5%Max. Output Efficiency: 91.2%Nighttime Power Loss: <1WTotal Flow Distortion: <5%Recommended Battery Parameters: 36V/20mah Gross Weight: 2.48kg/5.47lbsNet Weight: 1.63kg/3.59lbsProduct Size: 21.3*5.8*25cm/8.39*2.28*9.84inchPackage Size: 34*24*11.5cm/13.39*9.45*4.53inchPackage Included1* Micro Inverter1* LCD Display1* AC Connection Cable1* English ManualOther Accessories for InstallationNotes1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.2.Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.3.When the input load is with solar panels, it is important that the VOC voltage is between 30-48V. We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.4.When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting the product. The recommended battery current is36V/20mah for 600W.5.The input and output voltage of the configuration is within the normal operating voltage range of the product in order for the product to work properly and achieve grid-connected power generation.6.Please do not dismantle the inverter by non-specialists, only qualified service personnel should repair this product.7.Please install the inverter in a place with low humidity, good ventilation and cool places to avoid overheating the inverter and remove flammable and explosive materials from the surrounding area.8.When using this product, avoid children touching and playing with it to avoid electric shock.

• Max Power Point Tracking & Full Digital Control: A powerful maximum power point tracking algorithm to optimize power harvesting from solar panels that precisely captures and targets the maximum output power point. The microinverter adopts full digital control technology, which makes the machine have a strong anti-interference ability, fast computing speed, and a high degree of intelligence
• Reverse Power Transmission: This microinverter adopts highly efficient reverse power transmission technology, in which the power is transmitted in the reverse direction when in grid-connected output mode, automatically detecting the load in the circuit and giving priority to its use, making the output more efficient in photovoltaic power generation application systems
• Safety Guard: The solar grid tie microinverter has 6 protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. The IP65 waterproof design can prevent rain from eroding its surface
• Flexible Installation Mode: During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC
• LCD Display & Electrical Isolation: The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable
