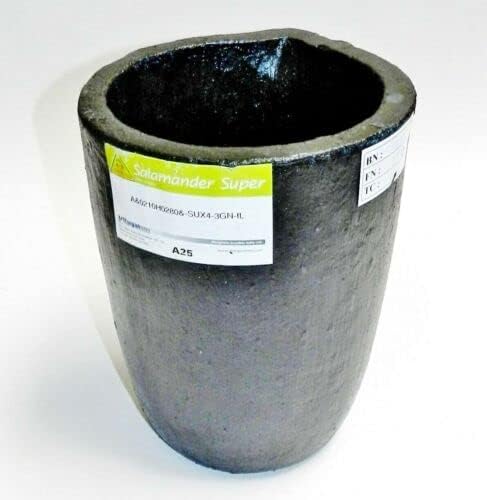

A20 Salamander Crucible Clay Graphite Super a Melting Non-Ferrous Metals #20

🟢 Salamander Crucible A-20 Clay Graphite 🟢 Melting Crucible 🟢 Salamander Crucible “Super” is a high-quality Clay Graphite crucible, consistent in performance, and has good thermal conductivity. 🟢 It is widely used for the melting of metals in gas and electric melting furnaces. 🟢 The clay graphite crucible manufactured by plastic forming techniques, retains heat longer and tolerates thermal shock when in a melting furnace of up to 2500oF. 🟢 Typical Metal Casting Temperature 1562-2912°F / 850-1600°C 🔻 PERFORMANCE CHARACTERISTICS 🔻 🟢 Clean melting 🟢 Good thermal conductivity 🟢 Good resistance to chemical corrosion 🟢 High refractoriness 🔻 SPECIFICATIONS: JETS Product # 0317-120 Salamander # A20🔻 🔸 Capacity: 66 Lbs. / 30 Kgs. BRASS 🔸 Overall Height: 10-3/16” / 260mm 🔸 Inside Depth: 9-1/4” / 240mm 🔸 Top Outside Diameter: 7-3/4" / 197mm 🔸 Bottom Outside Diameter: 5-1/2" / 140mm 🔸 Crucible Weight: 12.5 Lbs. - 5.7Kg

• 🟢 Capacity: 66 Lbs. / 30 Kgs.
• 🟢 Overall Height: 10-3/16" / 260mm
• 🟢 Inside Depth: 9-1/4" / 240mm
• 🟢 Top Outside Diameter: 7-3/4" / 197mm
• 🟢 Bottom Outside Diameter: 5-1/2" / 140mm
• 🟢 Crucible Weight: 12.5 Lbs. - 5.7Kg
• 🔻 More information on Product description 🔻
