| Management number | 231077798 | Release Date | 2026/06/18 | List Price | $20.08 | Model Number | 231077798 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

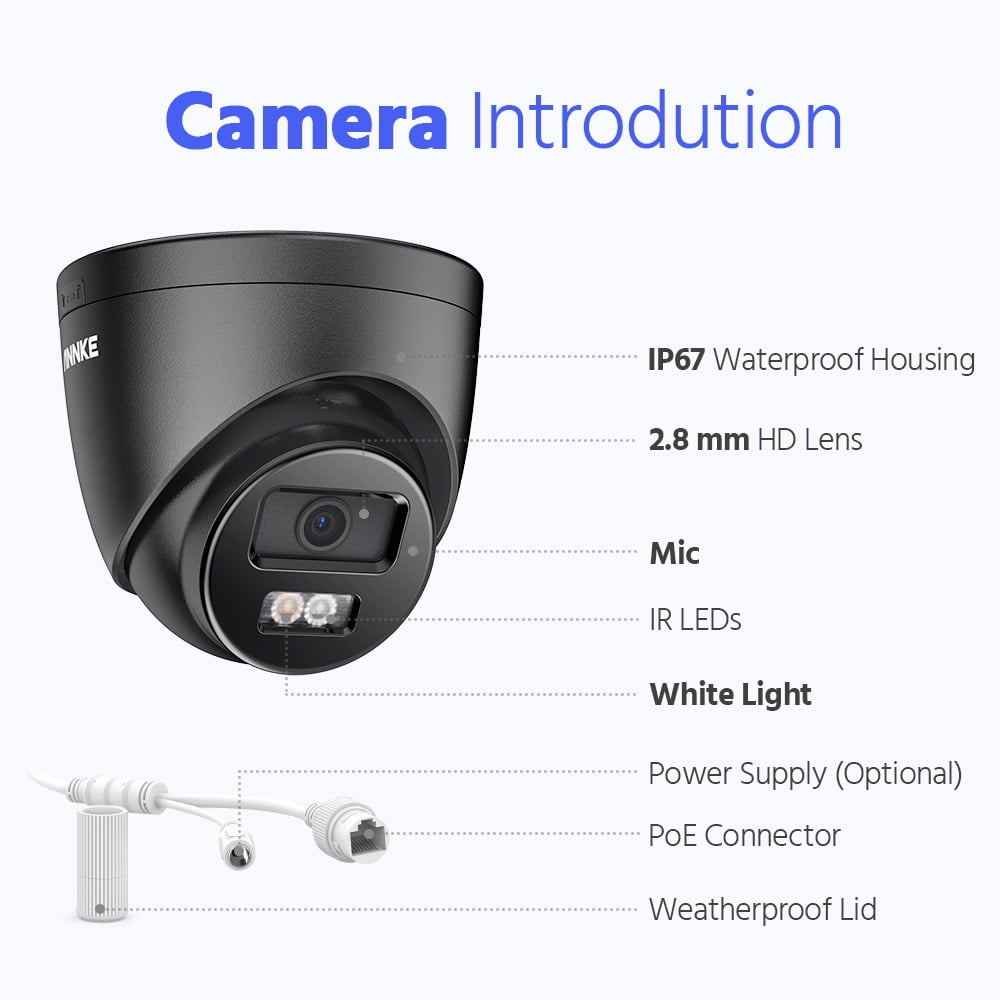

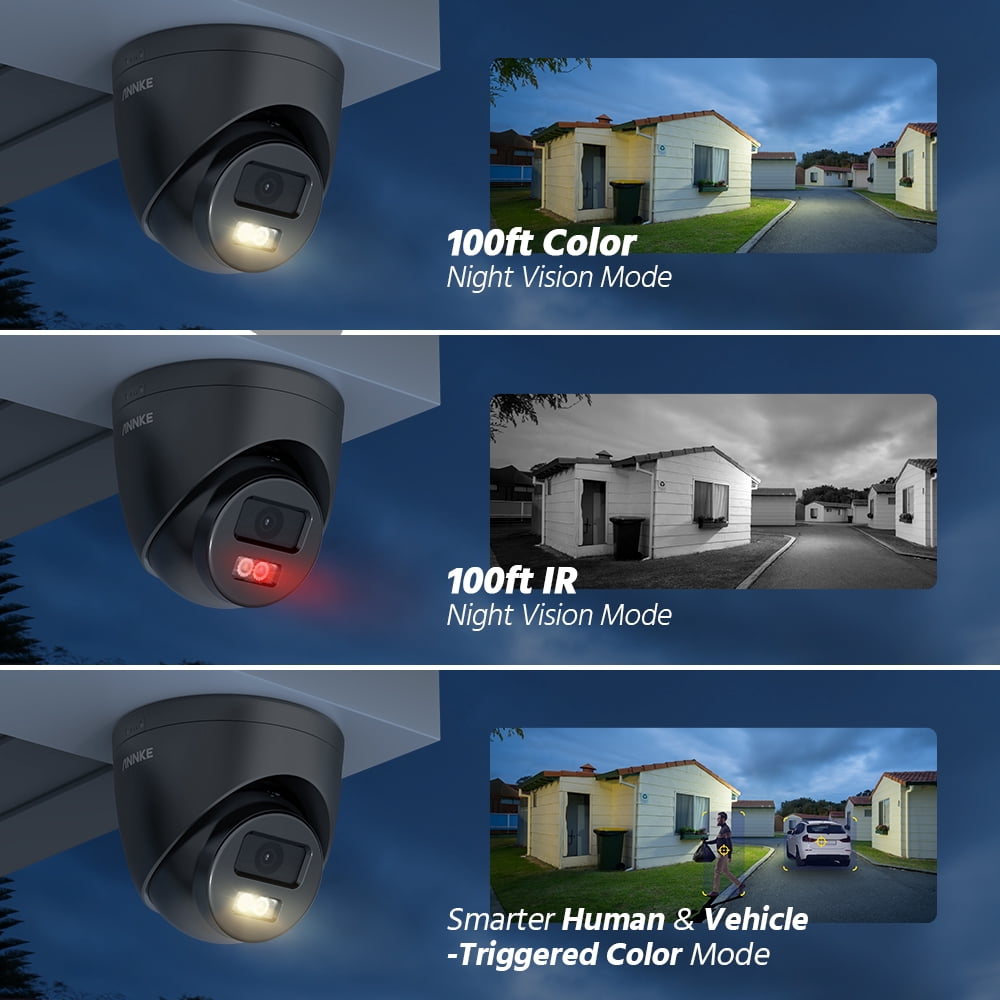

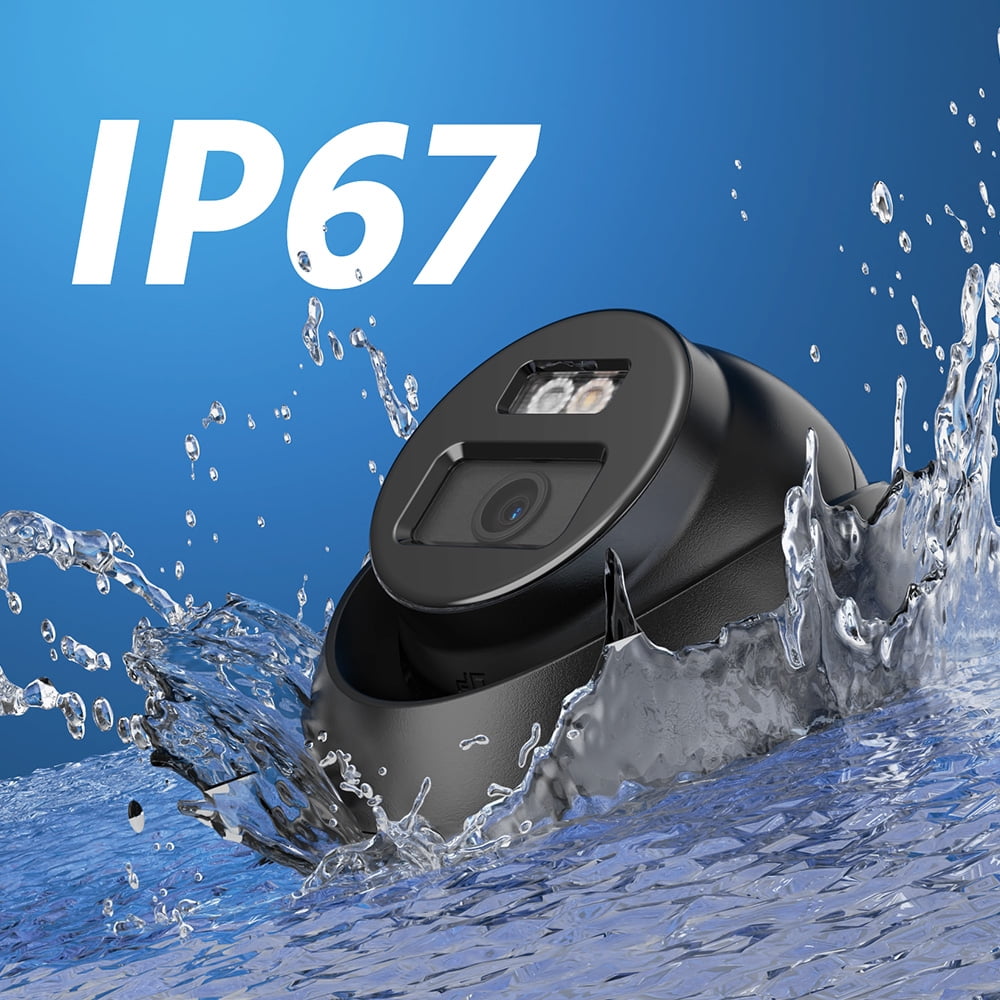

"<p><b>Description:</b></p> <p>""★ 3K IR Network Camera with 16:9 image scale</p> <p>★ 2.8mm lens brings everything back to life</p> <p>★ Efficient H.265+ compression technology</p> <p>★ Motion detection 2.0 with human & Vehicle Detection</p> <p>★ Smart Dual-Light: advanced technology with long range </p> <p>★ Clear day and night vision with 3D DNR and 120DB WDR </p> <p>★ Built-in microphone for real-time audio security </p> <p>★ Support on-board storage up to 512 GB (SD card slot) </p> <p>★ IP67 Dust and Waterproof Rating</p> <p>★ Support PoE &DC12V ""</p> <p>Camera:</p> <p>Image Sensor: 1/3"" Progressive Scan CMOS</p> <p>Max resolution: 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display</p> <p>Main Stream: ""50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)</p> <p>60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)""</p> <p>Substream: ""50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)</p> <p>60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)""</p> <p>Video Compression: ""Main stream: H.265+/H.265/H.264+/H.264</p> <p>Sub-stream: H.265/H.264/MJPEG""</p> <p>Video Bitrate: 32 Kbps - 6 Mbps</p> <p>Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC</p> <p>Audio Input: Built-in Microphone, record with audio</p> <p>Lens: 2.8 mm</p> <p>Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR</p> <p>Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°</p> <p>Supplement Light Type: Smart Dual-Light, IR, White Light</p> <p>Supplement Light Range: Up to 30 m</p> <p>Motion detection 2.0: Supoort, include Human & Vehicle detection</p> <p>Image Enhancement: BLC, HLC, 3D DNR</p> <p>Wide Dynamic Range: 120 dB WDR</p> <p>Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP</p> <p>API: Open Network Video Interface Version 18.12</p> <p>Region of Interest (ROI): 1 fixed region for main stream</p> <p>Privacy Mask: 4 programmable polygon privacy masks</p> <p>General Function: Mirror,rotate,password protection, remote access</p> <p>Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port</p> <p>General:</p> <p>Housing: Metal & Plastic</p> <p>Color: Black</p> <p>Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB</p> <p>Hardware Reset: Yes</p> <p>Operating Power: DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W</p> <p>Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C</p> <p>Indoor/Outdoor Use: Indoor/Outdoor</p> <p>Interface Protection: IP67</p> <p>Dimension (L X W X H): Ø110 mm × 89.2 mm (Ø4.3"" × 3.5"")</p> <p>Weight: Approx. 340 g (0.7 lb.)</p>"
| Has night vision | Y |
|---|---|
| Resolution | 3K |
| Field of view | 78 º |
| Features | Waterproof Camera, High Definition |
| Rec location | Indoor and Outdoor |
| Power type | Corded Electric |
| Brand | ANNKE |
| Camera type | Dome Surveillance Cameras |
| Number of cameras | 1 |
| Mem card type | SDHC |
| Color | 1Pcs |
| Assembled product height | 3.5" |
| Assembled product weight | 0.48 lb |
| Connector type | RJ45 |
| Has nrtl listing certification | N |
