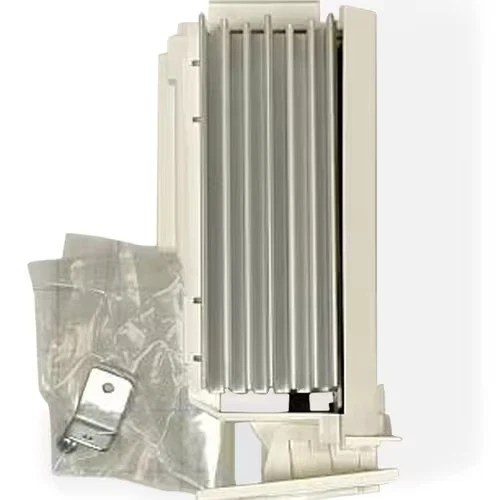

✅Original New OEM Frigidaire 134743500 Frigidaire Washing Machine Motor Control

The Frigidaire 134743500 Washing Machine Motor Control Board is a critical electronic component responsible for managing the precise operation of the washer's drive motor. Here are the key features and functions: * Core Function: Motor Regulation ** Controls Motor Speed: It precisely regulates the speed of the drive motor during both the wash (agitation/tumble) and spin cycles. ** Controls Motor Direction: It dictates the forward and reverse rotation of the drum/tub, which is essential for proper washing and tumble action. ** Receives Commands: It acts as the intermediary, receiving signals from the main electronic control board (the user interface board) and translating those signals into the appropriate power instructions for the motor. * OEM Authenticity ** It is an Original Equipment Manufacturer (OEM) part from Frigidaire/Electrolux, ensuring it meets the appliance's precise electrical, software, and physical specifications. * Performance and Efficiency ** Its precise control ensures the washer operates at optimal energy consumption and delivers consistent, effective washing and spin performance. ** It often includes features or circuitry to help prevent motor overheating and damage. * Common Failure Resolution ** It is the likely solution for common washer problems such as: *** The washer agitates but fails to go into the final high-speed spin. *** The motor exhibits erratic or no movement at all, even though the main control panel is functioning. *** Certain error codes related to motor communication or control. * Appliance and Brand Compatibility ** It is typically used in various models of Frigidaire front-load washers and is often cross-compatible with other Electrolux family brands, including Kenmore, Crosley, and White-Westinghouse models that use the same motor technology.

• Variable Speed Regulation: Uses advanced power electronics to control the frequency and voltage sent to the motor
• allowing for smooth transitions between slow agitation for delicates and high-RPM extraction for spin cycles. Directional Logic: Efficiently switches the motor polarity to allow for the back-and-forth tumbling action essential for cleaning clothes in front-load washers. Diagnostic Communication: Constantly monitors the motor’s performance and sends feedback to the main control board. If it detects a problem (like an unbalanced load or motor obstruction)
• it triggers specific error codes (e.g.
• E52
• E58) to protect the machine from damage. Integrated Heat Management: Features built-in heatsinks and high-grade capacitors designed to handle the thermal stress of high-current draws during heavy laundry loads. Plug-and-Play Connectors: Designed with keyed electrical terminals that ensure a secure
• vibration-resistant connection to the wiring harness without the risk of incorrect installation. OEM Reliability: As a genuine Electrolux/Frigidaire part
• it is built to the exact electrical tolerances required for the 3-phase induction motors found in Frigidaire
• Kenmore (417. series)
• and Crosley front-loaders.
