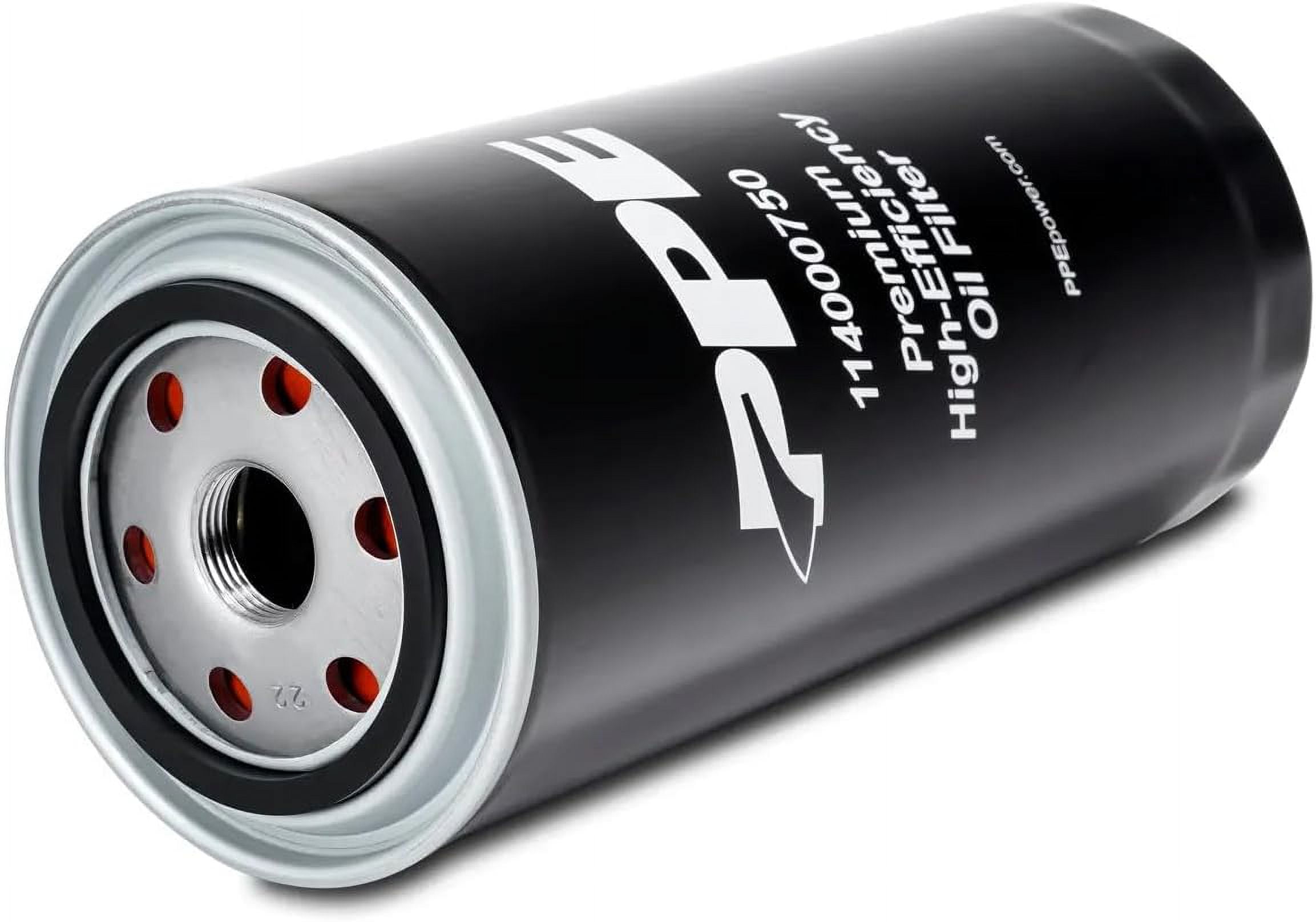

PPE Diesel 114000750 Engine Oil Filter GM 6.6L 2020+ L5P

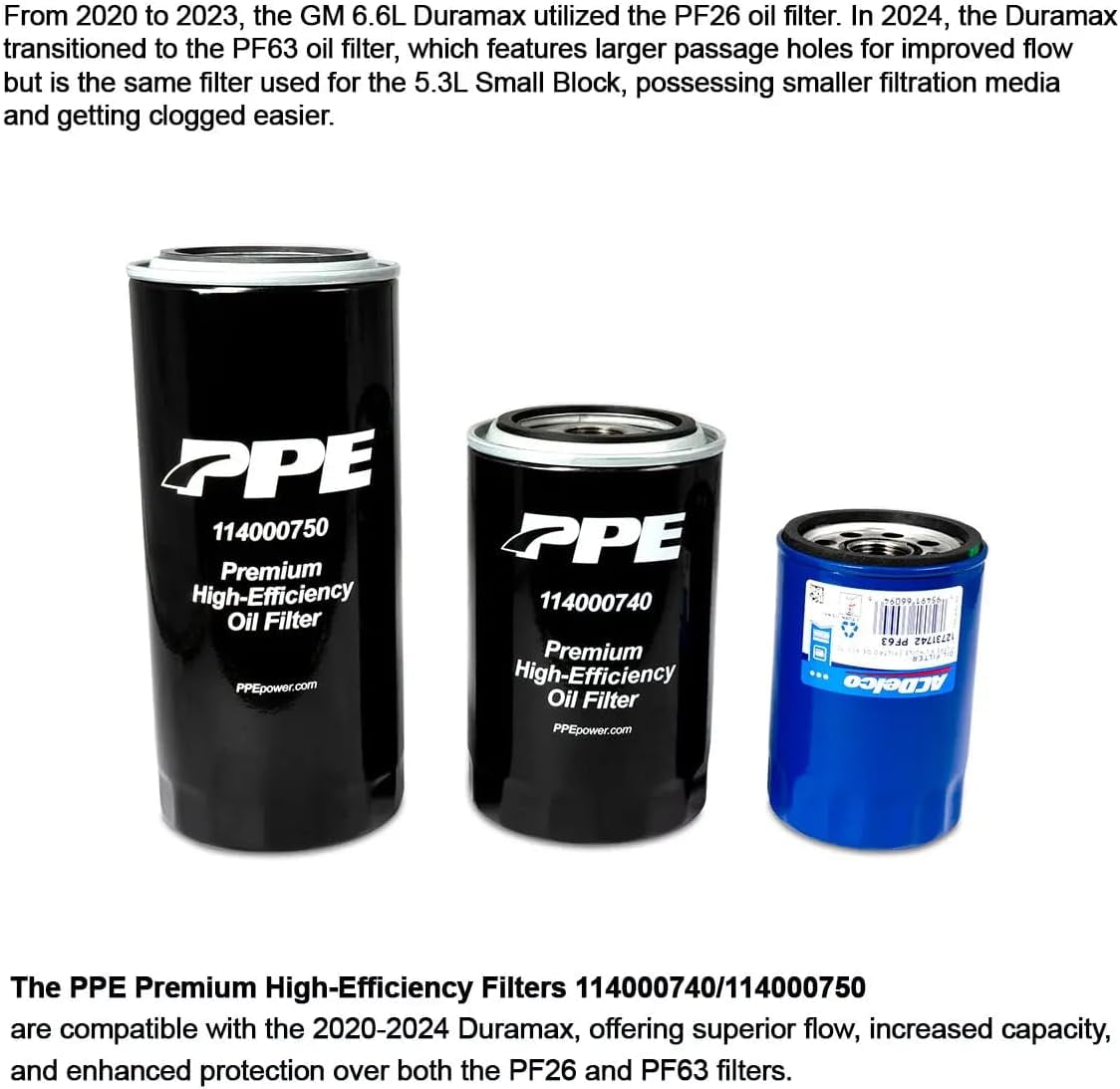

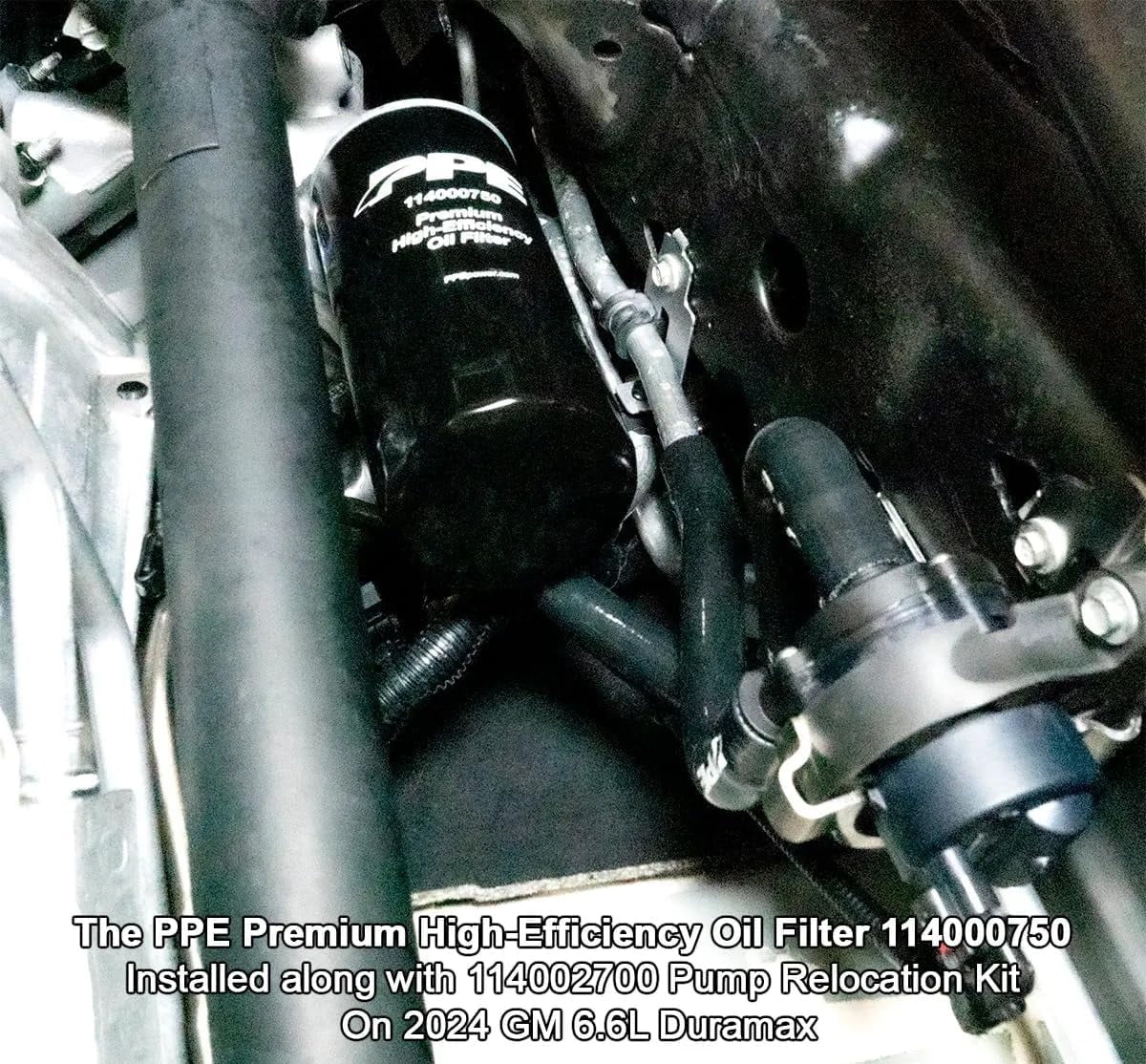

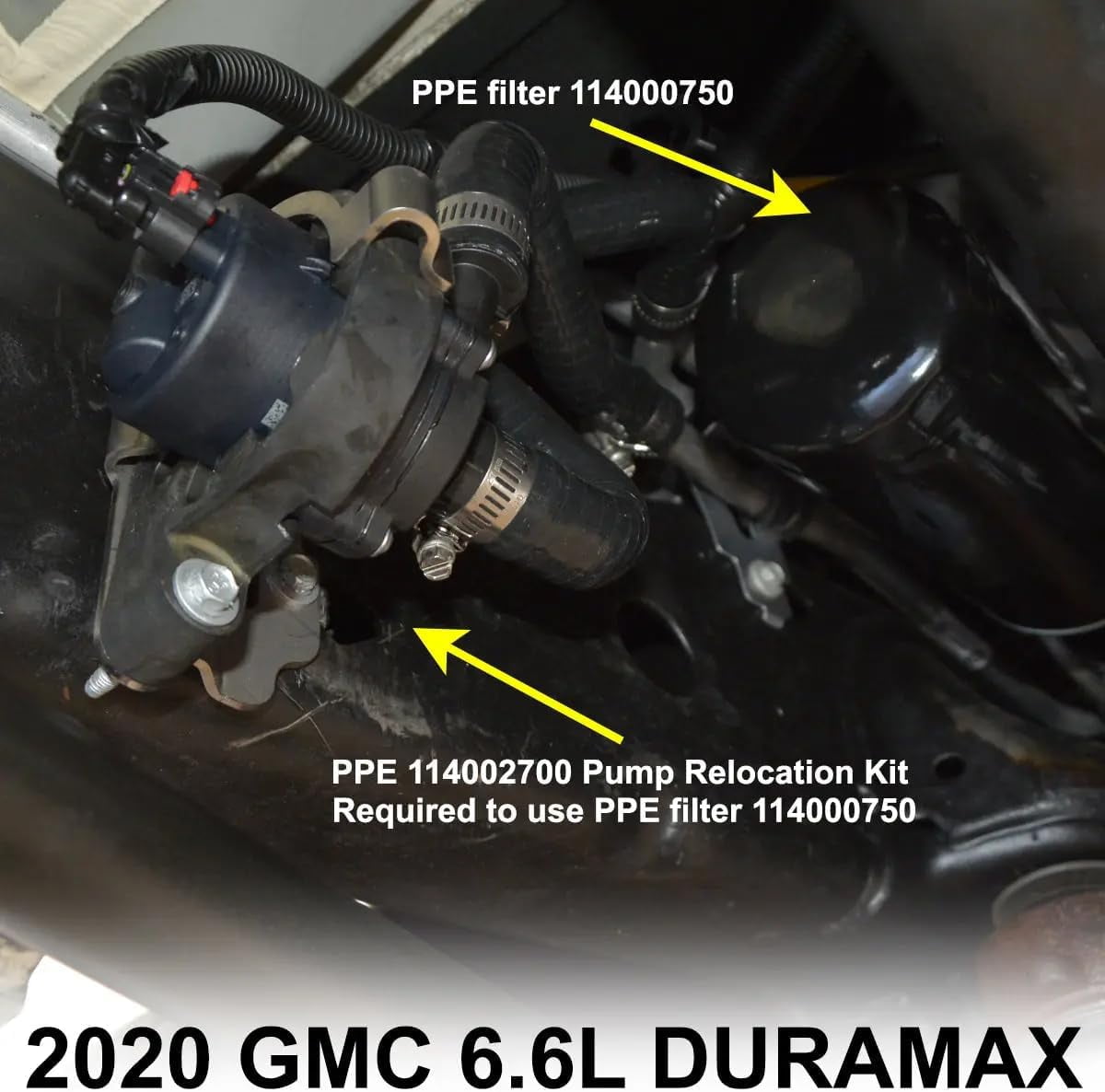

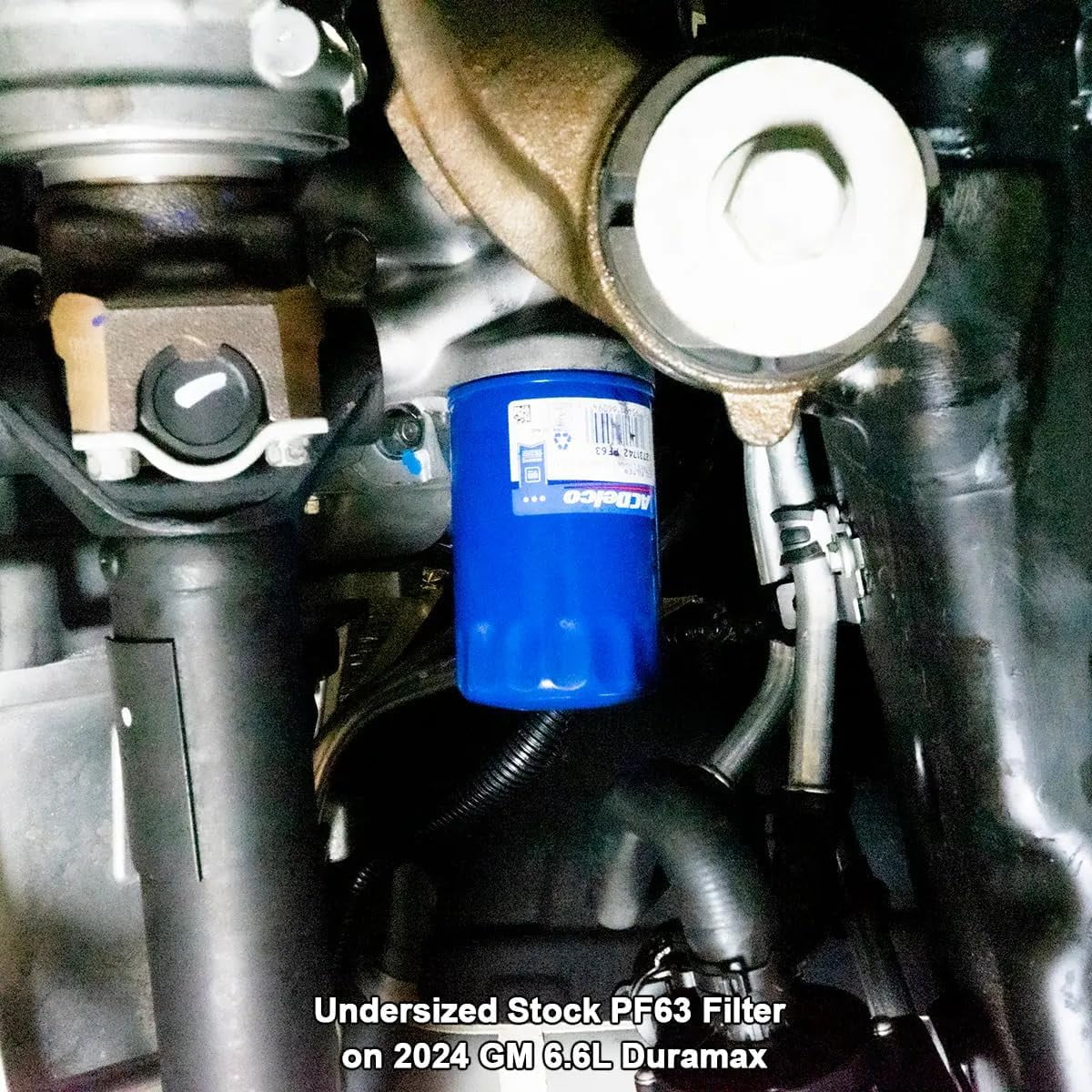

<strong>This oversized filter requires the 114002700 PPE Fuel Pump Relocation Kit<br><br></strong>This all-new oversized PPE filter features significantly increased capacity, with specially engineered filter media providing a total of 522 square inches of filtration area. A perforated metal center core reinforces the media for added durability, while a coil spring design helps prevent blow-by. The filter also includes a built-in magnet to capture ferrous particles and a silicone anti-drain-back valve to keep contaminated oil from circulating. A stiffer bypass valve spring, combined with a rubber seal, ensures better performance, and the thicker base plate offers 49% larger passages to improve oil flow.<br><br>In comparison, the OEM PF26 filter falls short with just 259 square inches of filtration at 25–30 microns. It lacks center core support, increasing the risk of media collapse. Its basic leaf spring design can lose tension over time, potentially allowing dirty oil to bypass the filter. Additionally, the OEM bypass valve does not include a seal.

• Superior Filtration: 522 square inches of specially engineered 5-micron media for efficient filtration
• Sturdy Construction: Thicker threaded plate with 49% larger oil passages and perforated metal center for added strength
• Advanced Features: Silicone anti-drain-back , high-power magnet, and stiffer bypass with rubber seal for optimal performance
• Versatile Compatibility: Suitable for both synthetic and conventional oils, designed for 2020+ 6.6L Duramax L5P
• High-Quality Materials: Constructed with silicone, rubber, and metal for durability and reliability
