Reverse Circulation Drilling Rig for Water Wells Geological Exploration and Construction Projects Multi Spec Options Portable Design Stable Operation and High Performance Drilling System

This drilling rig is designed for high-efficiency and deep-hole operations. Max Drilling Depth: 200 m, 300 m, 400 m, 500 m, 600 m. Drill Diameter: 115–305 mm; Recommended Drill Pipe Diameter: Φ89, Φ108, Φ112, Φ127 mm. Drill Rod Length: 3 m; Drilling Angle: 55°–90°. Rotary Torque: 3500–8000 Nm; Rotary Speed: 0–150 r/min. Lifting Force: 10–15 T; Fast Lifting Speed: 14.5 m/min; Fast Feeding Speed: 21 m/min. Axial Pressure: 4–7 T; Feed Stroke: 3370 mm; Auxiliary Winch Lifting Force: 20 T. Drilling Efficiency: 10–25 m/h, ensuring fast and precise penetration. Engine Power: 75 kW; Travel Speed: 2.5 km/h; Uphill Capability: 21°. Machine Weight: 5.5–11 T; Dimensions: 5.5–6.8 × 2.1 × 2.8 m. Operator Cabin: 1680 × 350 × 850 mm for comfortable and precise control. Optional Accessories: Reverse circulation device, mud pump, generator, foam pump. Working Conditions: Designed for loose soil layers and bedrock, adaptable to diverse geological environments. Applications: Water wells, foundation drilling, geological exploration, construction projects. Advantages: Multi-model options, customizable configurations, high drilling efficiency, stable performance, easy transport and setup, ideal for professional and industrial use. This reverse circulation drilling rig is designed for water well drilling, geological exploration, and construction projects. The equipment supports multiple specifications to meet different drilling depth, hole diameter, and site requirements. Its portable structure allows flexible movement between jobsites, while the reverse circulation drilling system delivers stable and high performance drilling results. Suitable for various ground conditions, the rig is built for continuous operation in demanding working environments.

• PLEASE NOTE: Our reverse circulation drilling rigs are available in different drilling depths, hole diameters, and configurations, with customization supported to meet various geological and project requirements. Final pricing may vary depending on specifications and optional features. For tailored recommendations and more details, feel free to contact us via What-sA-pp at +86 15② 3839 0②69
• DESIGNED FOR WATER WELL AND GEOLOGICAL DRILLING: Suitable for water well drilling, geological exploration, and construction applications across various project types.

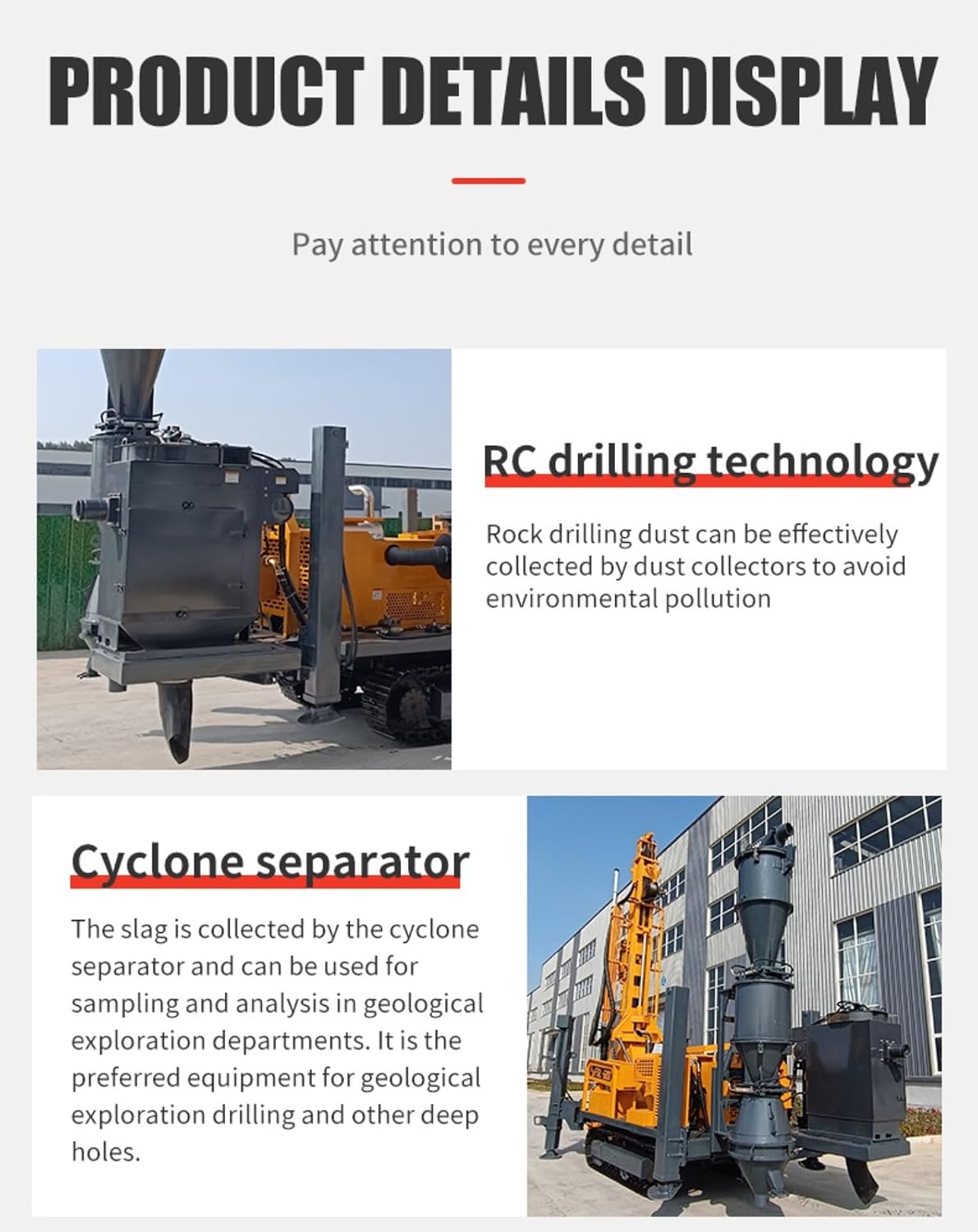

• REVERSE CIRCULATION DRILLING SYSTEM: Reverse circulation structure supports stable cuttings discharge and consistent drilling performance under different ground conditions.
• MULTI SPECIFICATION OPTIONS AVAILABLE: Multiple specification options allow selection based on drilling depth, hole diameter, and project scale.
• STABLE AND HIGH PERFORMANCE OPERATION: Built for reliable performance during continuous drilling tasks in construction and exploration environments.
