SIEMENS 3P 60A 240V General Duty Safety Switch Indoor, Non-Fusible
Product details
| Management number | 218622820 | Release Date | 2026/05/03 | List Price | $29.06 | Model Number | 218622820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Siemens General Duty Safety Switches are intended for applications where reliable performance and continuity of service are needed, but where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240V AC or less where the available fault current is less than 100,000A when used with Class R or T fuses, or 10,000A max when used with Class H fuses. All switches are provided with imbedded "ON" and "OFF" indicators and padlocking provisions on the handle and door. All switches are UL listed. Fuses not included on fusible device. Use HA type hubs if required.
- 120/240V, 1 and 3 phase, 3 wire, non-fusible safety switch. No Receptacle
- Visible blade, double-break switch action. NEMA Configuration- NEMA 1

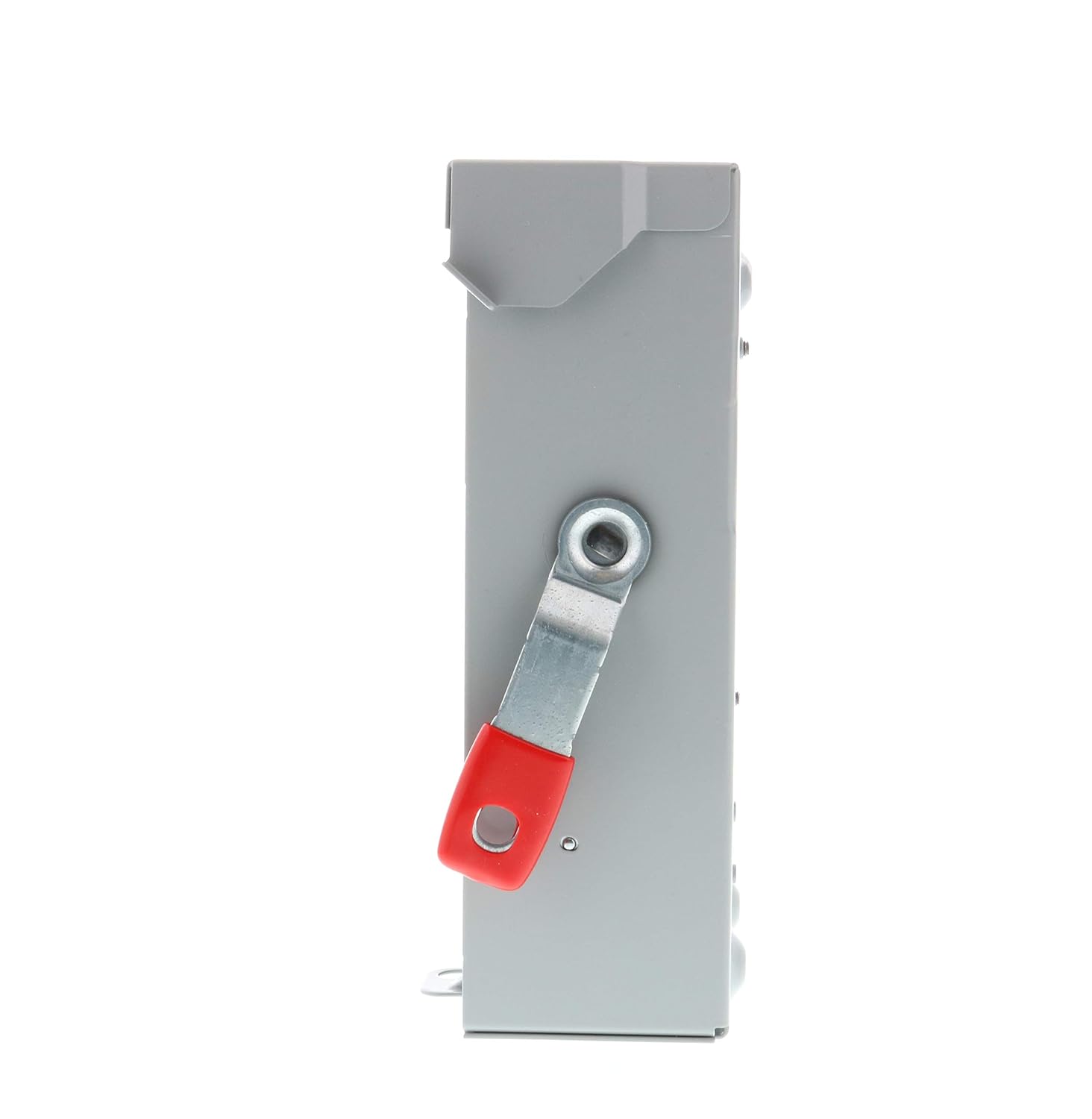

- Quick-make, quick-break mechanism that ensure positive operation
- Durable ON/OFF indication imbedded in steel door eliminates risk of scratching or fading
- Compact size for easy handling and efficient space utilization
| UPC | 804766753329 |
|---|---|
| Color | ANSI 61 Grey |
| Model | GNF322A |
| Wattage | 14400 watts |
| Terminal | Physical |
| Brand Name | SIEMENS |
| Unit Count | 1.0 Count |
| Item Weight | 3 Pounds |
| Part Number | GNF322A |
| Switch Type | Safety Switch |
| Circuit Type | 3-phase, 120/240V |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | SIEMENS |
| Actuator Type | manual |
| Material Type | GNF322A |
| Mounting Type | Wall Mount |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Current Rating | 60 Amps |
| Item Type Name | SIE GNF322A; NF GEN DUTY SAFETY SWITCH |
| Operation Mode | Off |
| Item Dimensions | 5.43 x 3.95 x 8.56 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 240 Volts |
| Included Components | safety switch |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
| Global Trade Identification Number | 00804766753329 |
